LVP 4 is a device developed for building automation technology and can be easily developed in accordance with the needs.

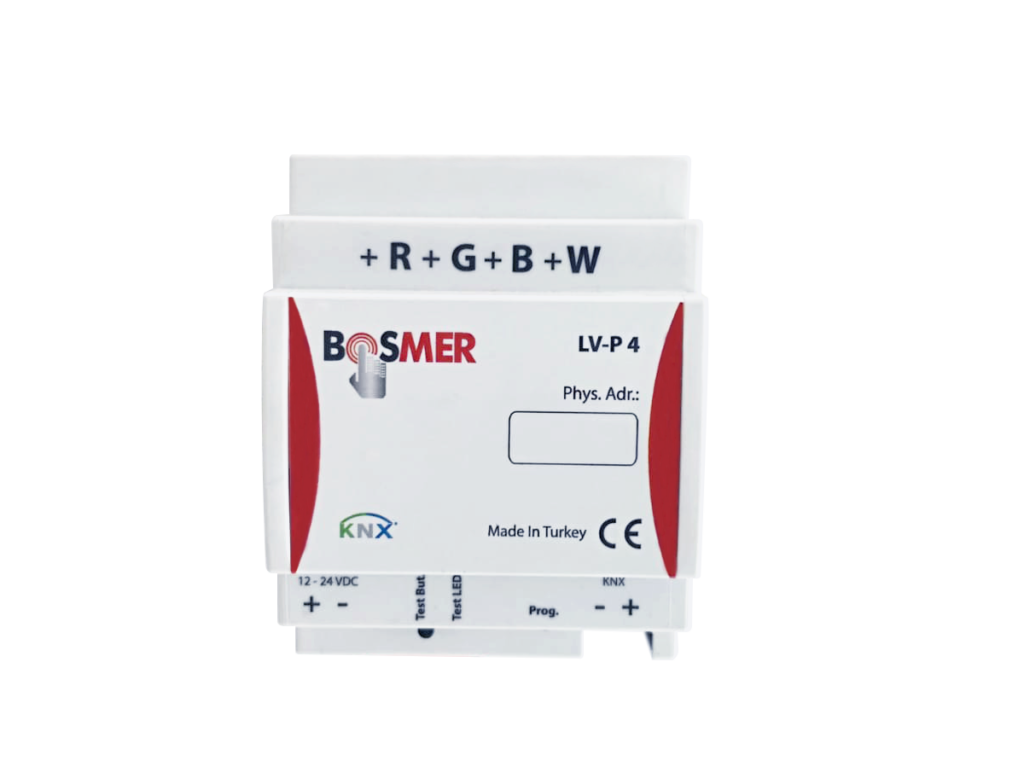

The Bosmer LVP 4 is a 4-output device which is compatible with the KNX standard. The main task of the device is Led control. The device is designed for 4-channel Led control (RGBW, RGB + Ch4 or Quad channel). All outputs can be configured with corresponding parameters. The parameters can be set via ETS program.
| Model | LVP 4 |
| Explanation | 4 CHANNEL KNX DRIVERS |
| KNX Power Supply | KNX 30 V DC |
| KNX Current Consumption | 12 mA |
| KNX Mod | S-Mod |
| Exit | Channel 4 |
| External Power Supply | 12-24 VDC |
| Current Capacity | 4 x 2.5 A (Maks. 10A) |
| Control Method | Electronics (MOSFET / 122.5 to 490 Hz. / Constant Voltage) |
| Setup | DIN Rail Mounting (4M) |
| Temperature Range | -20 ... + 55 0C |
| Dimensions | 70x90x59 mm |
| Flammability | Heat resistant |
| Certificate | THIS |
